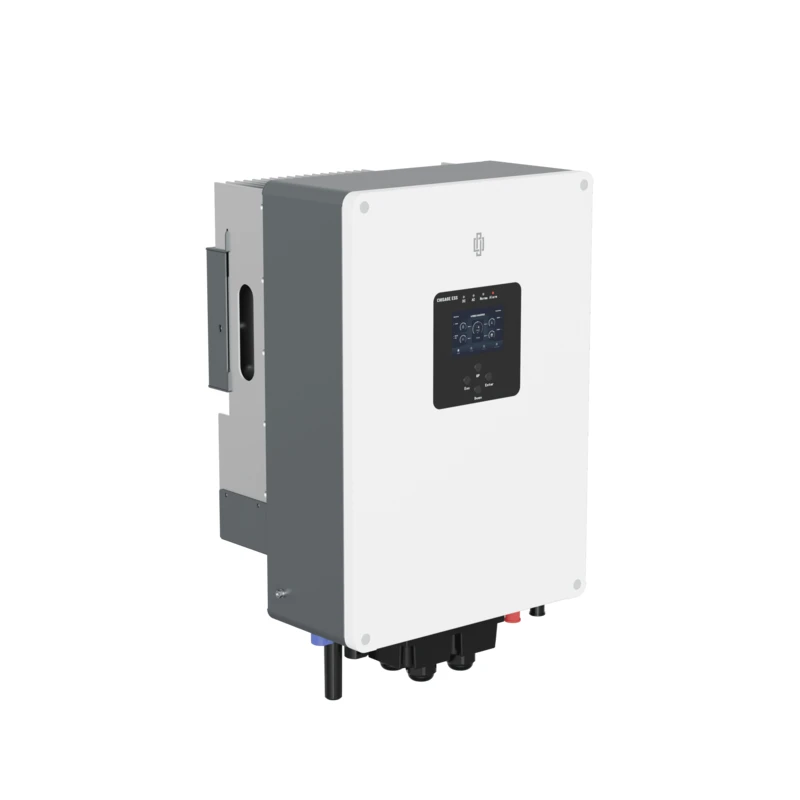

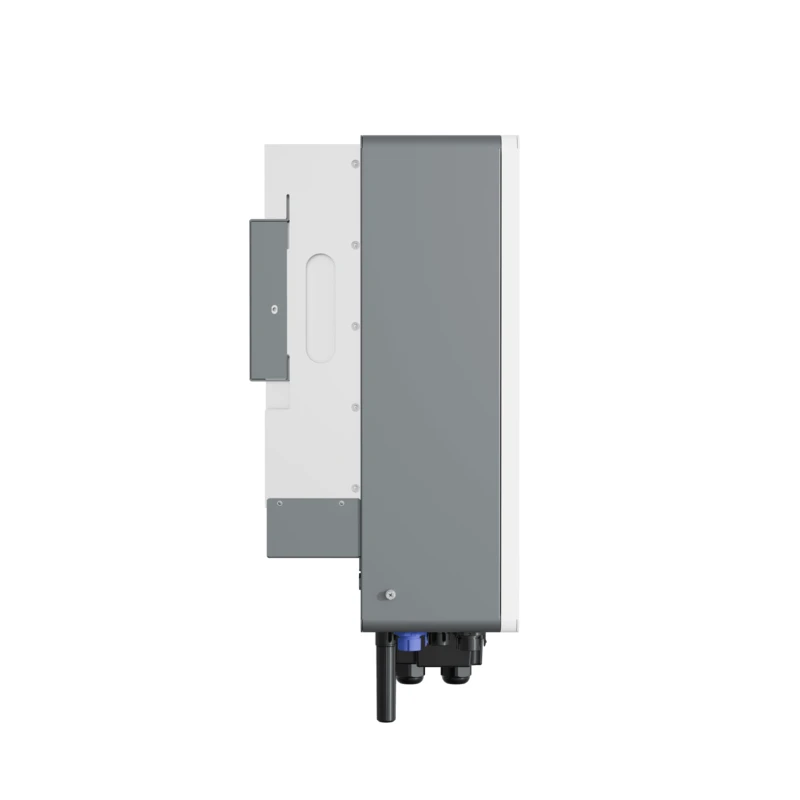

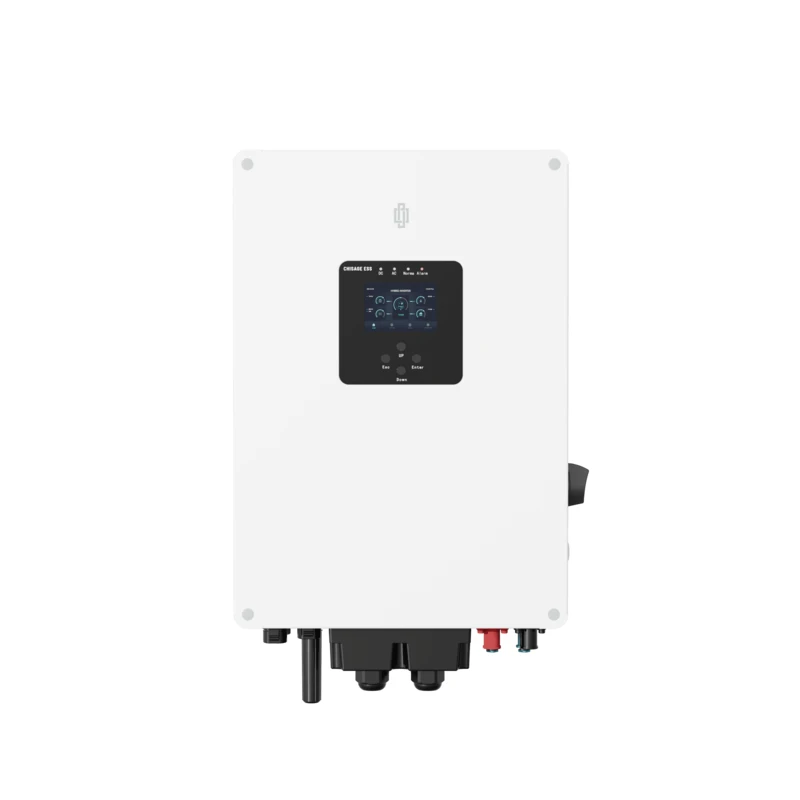

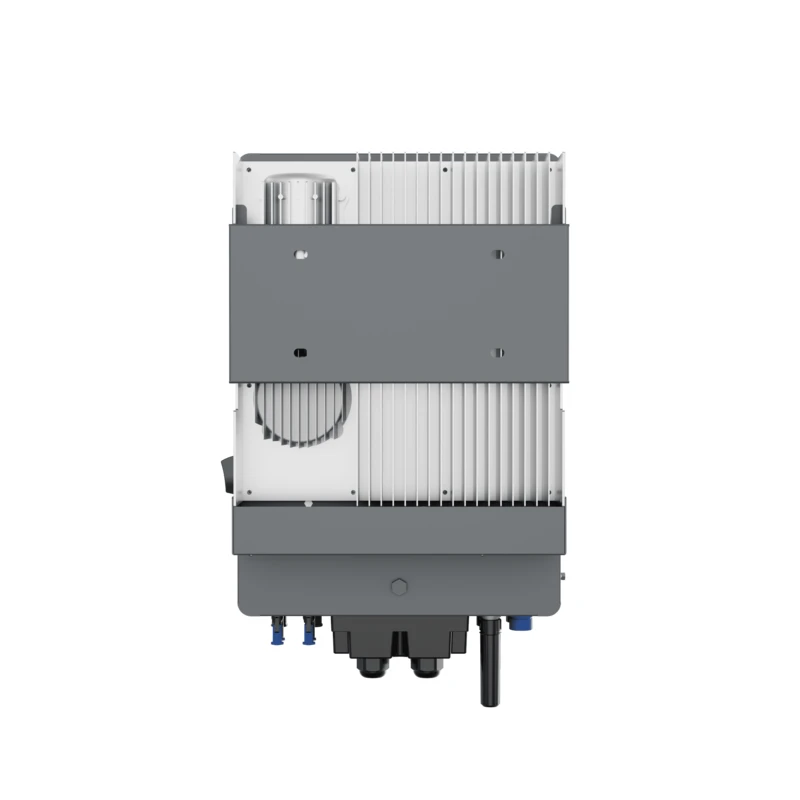

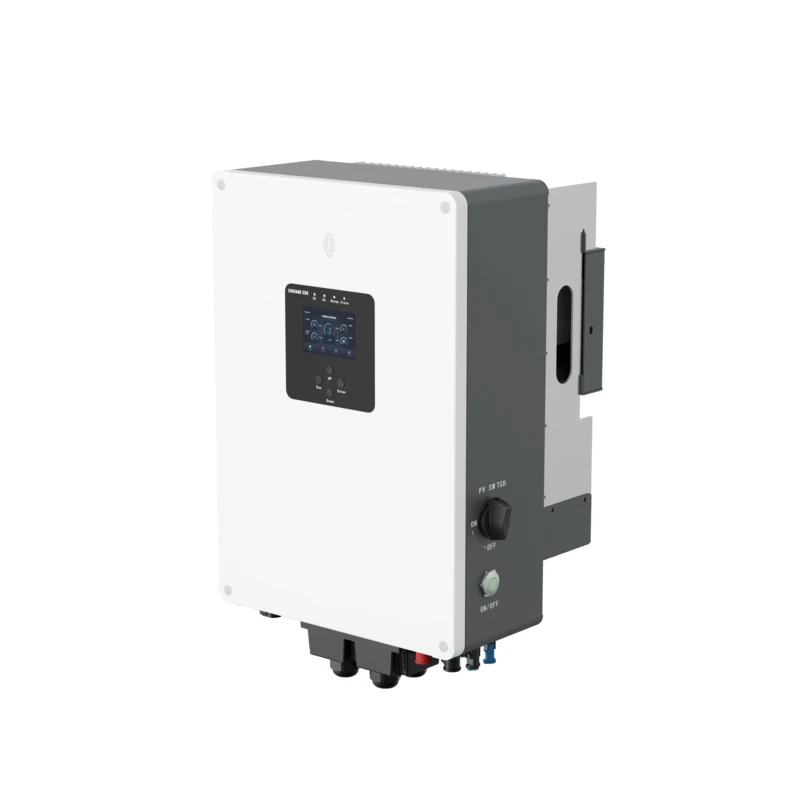

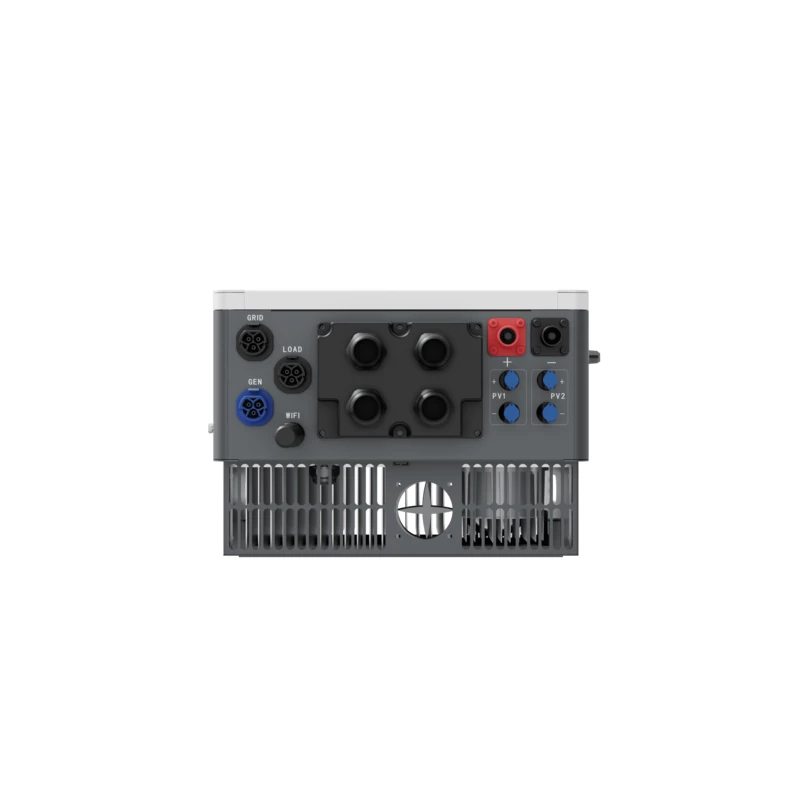

Invertor hibrid monofazat Chisage de 6.6kW, permite functionare on-grid si off-grid, backup (EPS) si paralelizare flexibila cu invertoare de puteri diferite.
| Aplicatie mobila | DA |
| Baterie inclusa | NU |
| Comunicare | CAN, RS485 |
| Conexiune trifazata | NU |
| Curent maxim de iesire | 31.6A |
| Curent maxim descarcare baterie | 150A |
| Curent maxim încarcare baterie | 150A |
| Curent MPPT | 18+18 |
| Dimensiuni | 350W×500H×256D |
| Display | LCD color tactil |
| Distorsiuni | THD<3%(Linear load <1.5%) |
| Eficienta | 97.9% |
| Factor de putere | 0.8 leading-0.8 lagging |
| Fregventa | 50Hz/45Hz-55Hz 60Hz/55Hz-65Hz |
| Garantie | 5 |
| Greutare | 23kg |
| Microgrid | DA |
| Model | VEN-6.6G2-LE |
| Producator | Chisage |
| Protectie externa | IP65 |
| Putere invertor | 6.6 kW |
| Putere invertor maxima | 7260W |
| Putere MPPT | 9.9kW |
| Racire | Smart Cooling |
| Tensiune inverter | 230V |
| Tensiune minima MPPT | 150V |
| Tensiune MPPT | 150-425V |
| Tensiune nominala iesire | 230V |
| Trackere MPPT | 2/1+1 |
